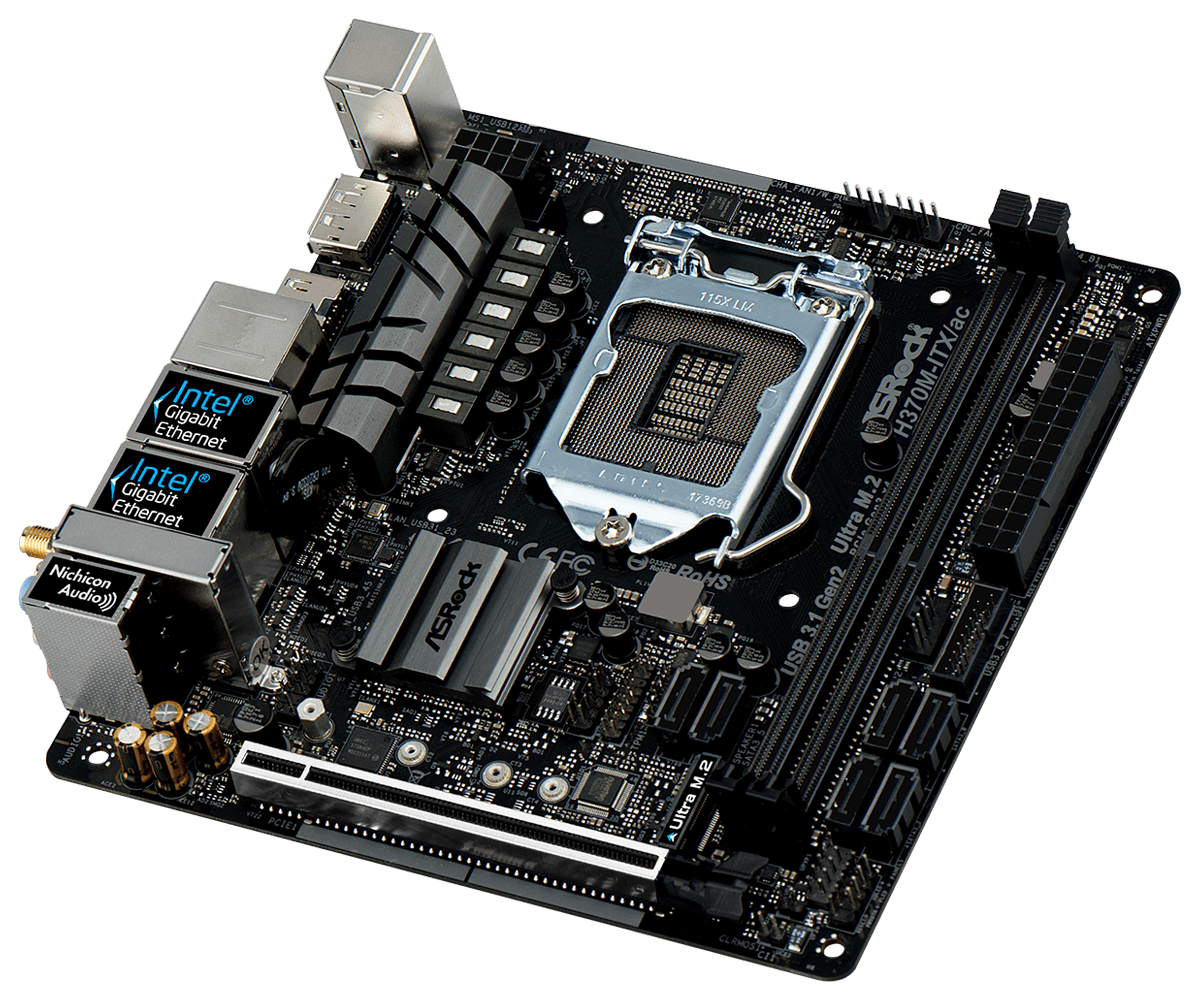

The ASROCK H370M-ITX/AC is another addition to the list of new Intel H370 motherboards but now in a mini iTX format. Featuring dual Gigabit ethernet, Intel 802.11ax WiFi + Bluetooth, 1 M.2. slot, a reinforced PCI-E 16x slot, four USB 3.1 gen 2 connectors (i/o) and dual HDMI connectors. The power delivery features a high quality Intersil ISL95866 4+3 phase PWM controller and two integrated drivers for the CPU VCore rail and one for the iGPU.  Tweaktown recently did a comprehensive review regarding this new Asrock board, performing on par with identical full ATX boards. Give them a visit via this link. Pricing of the Asrock H370M-ITX/AC starts at € 133,00.

The full specifications of the Asrock H370M-ITX/AC

  • Supports 8th Generation Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16
  • Graphics Output Options: 2 x HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

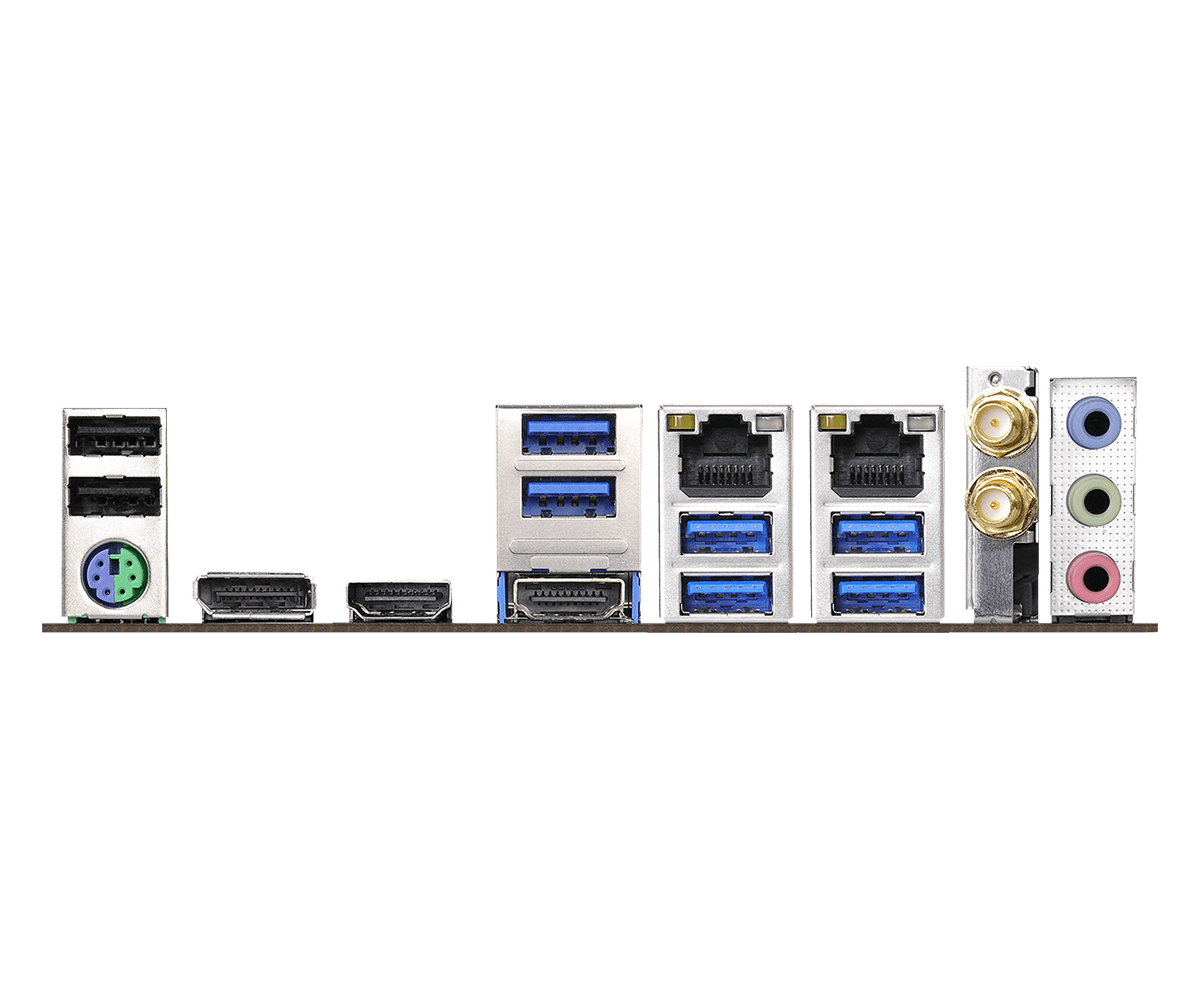

  • 4 USB 3.1 Gen2 10Gb/s (Rear)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Dual Intel® Gigabit LAN
  • Intel® 802.11ac WiFi + BT 4.2
