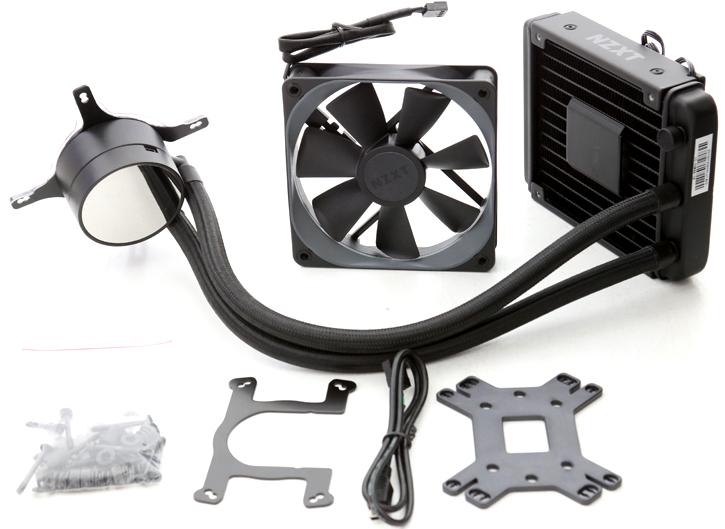

The guys at Guru3D recently did a nice review regarding the NZXT Kraken M22, the baby brother of the popular NZXT Kraken X52, X62 and X72 AIO coolers. Being almost similar on first glance does not mean its guts are identical, apart from it’s signature Kraken LED CPU block. The Kraken M22 fits all modern sockets even including AMD’s older FM2 and AM2 sockets. AMD’s Threadripper cpu’s are not supported.
Looking at the cooler and in specific the radiator made us look twice the first time. To avoid patents NZXT designed a somewhat weird looking radiator with an integrated pump design. Being positioned in the middle of the radiator, airflow should be good enough as the middle of any 120mm fan corresponds to the pump position, but is does mean you will loose some fan air pressure. Does the Kraken M22 perform bad than? No, it performs adequate but once the system is overclocked the performance lacks a bit. Visit Guru3D to have a look at the full review.
|Dimensions||Radiator: 152 x 120 x 32mm
CPU Water Block: 65 x 65 x 48mm
|Material(s)||Aluminum, copper, plastic, ultra-low evaporation rubber, nylon sleeving|
|CPU & Socket||Intel Socket 1151, 1150, 1155, 1156, 1366, 2011, 2011-3, 2066
Core i9 / Core i7 / Core i5 / Core i3 / Pentium / CeleronAMD AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
Ryzen / FX / Athlon X4 / Athlon X2 / A-Series APU / Phenom / Phenom II / Athlon / Athlon II / Sempron
|Pump Speed||3,000 +/- 300RPM|
|Fan Model||Aer P120|
|Fan Noise Level||21-36dBA|
|Fan Speed||500~2,000 +/- 300RPM|
|Control Method||Software with CAM|
|Number of Fans||1|
|LED Modes||Preset Modes: Fixed, Breathing, Fading, Marquee, Covering Marquee, Pulse, Spectrum Wave, Alternating, Tai Chi, Water Cooler, Loading
Reactive Modes: Smart and Audio
|System Requirements||CAM software requires Microsoft Windows® 10 operating system.
An internet connection is needed to download CAM, and some CAM-powered features require internet access, a valid email address, and acceptance of our current Terms of Service.
